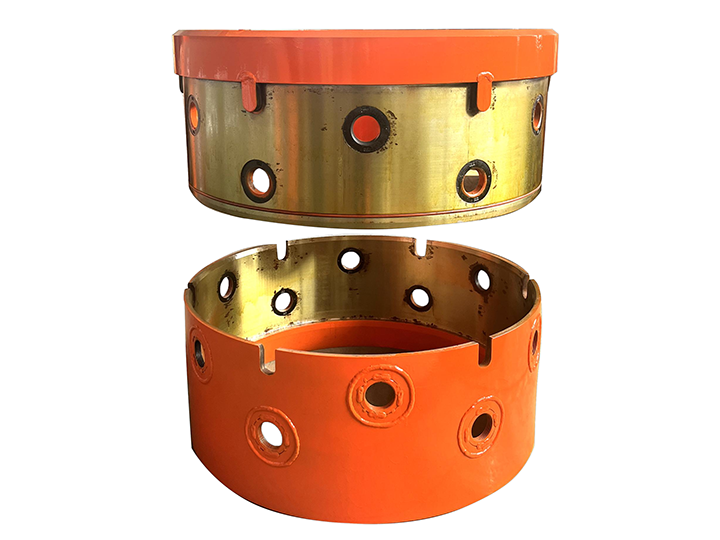

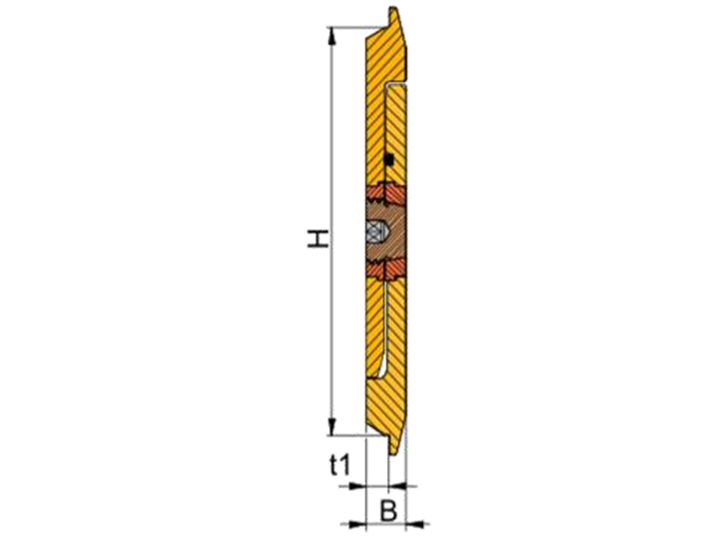

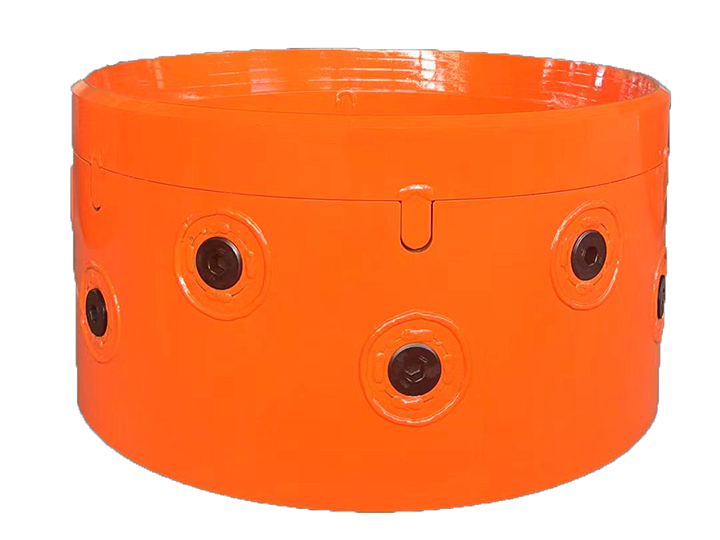

Double row casing joint groupDouble row casing joint groupDouble row casing joint group plan|
Sleeve model （mm） |
Material H |
Height H |
Thickness B |
Weight GK |
| 800/700 | 25CrMo | 700 | 50 | 679 |
| 900/800 | 25CrMo | 700 | 50 | 770 |
| 1000/900 | 25CrMo | 700 | 50 | 861 |
| 1100/1000 | 25CrMo | 700 | 50 | 951 |
| 1200/1100 | 25CrMo | 700 | 50 | 1042 |
| 1300/1200 | 25CrMo | 700 | 50 | 1132 |
| 1400/1300 | 25CrMo | 700 | 50 | 1223 |
| 1500/1400 | 25CrMo | 700 | 50 | 1313 |
| 1600/1500 | 25CrMo | 700 | 50 | 1404 |
| 1700/1600 | 25CrMo | 700 | 50 | 1495 |
| 1800/1700 | 25CrMo | 700 | 50 | 1585 |
| 1900/1800 | 25CrMo | 700 | 50 | 1676 |
| 2000/1900 | 25CrMo | 700 | 50 | 1766 |
| 2000/1880 | 25CrMo | 700 | 60 | 2109 |
| 2200/2080 | 25CrMo | 700 | 60 | 2326 |
| 2400/2280 | 25CrMo | 700 | 60 | 2544 |
| 2500/2380 | 25CrMo | 700 | 60 | 2652 |
| 2600/2480 | 25CrMo | 700 | 60 | 2761 |
| 2800/2660 | 25CrMo | 700 | 70 | 3462 |
| 3000/2860 | 25CrMo | 800 | 70 | 4247 |
| 3200/3050 | 25CrMo | 800 | 75 | 4853 |
| 4000/3850 | 25CrMo | 800 | 75 | 6095 |
